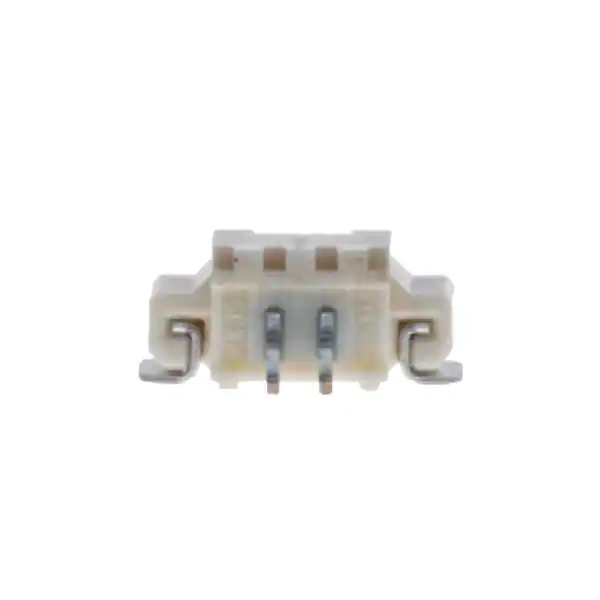

0532610271
Datasheet
1MB
Specifications
| Digi-Key Part Number | WM7620TR-ND – Tape & Reel (TR) |
| WM7620CT-ND – Cut Tape (CT) | |
| WM7620DKR-ND – Digi-Reel® | |
| Manufacturer | Molex |
| Manufacturer Product Number | 532610271 |
| Description | CONN HEADER SMD R/A 2POS 1.25MM |
| Manufacturer Standard Lead Time | 11 Weeks |
| Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.049″ (1.25mm) |
| Category | Connectors, Interconnects |
| Rectangular Connectors – Headers, Male Pins | |
| Mfr | Molex |
| Series | PicoBlade 53261 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch – Mating | 0.049″ (1.25mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing – Mating | – |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length – Mating | – |
| Contact Length – Post | – |
| Overall Contact Length | – |
| Insulation Height | 0.134″ (3.40mm) |
| Contact Shape | Rectangular |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | 39.4µin (1.00µm) |
| Contact Finish – Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Features | Solder Retention |
| Operating Temperature | – |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | – |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 53261 |

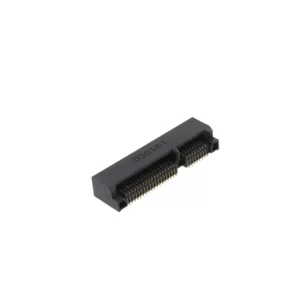

Similar Parts
