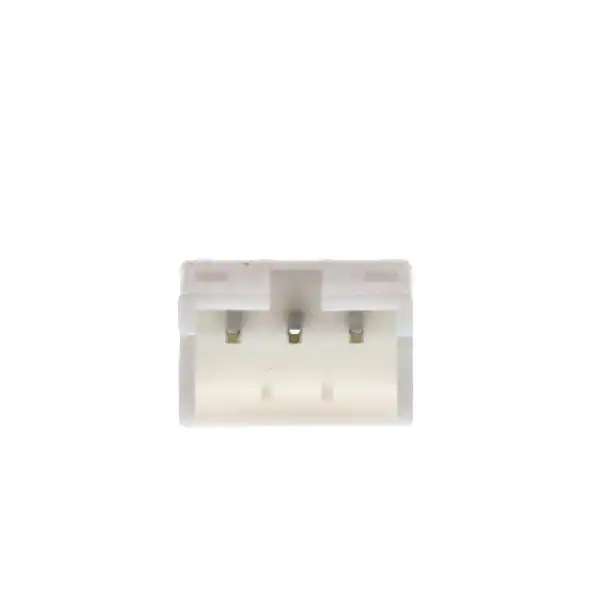

B3B-PH-K-S(LF)(SN)

Datasheet

1MB

Specifications

Digi-Key Part Number 455-1705-ND
Manufacturer JST Sales America Inc.
Manufacturer Product Number B3B-PH-K-S(LF)(SN)
Description CONN HEADER VERT 3POS 2MM
Detailed Description Connector Header Through Hole 3 position 0.079″ (2.00mm)
Category Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.079″ (2.00mm)
Number of Positions 3
Number of Rows 1
Row Spacing – Mating
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length – Mating 0.130″ (3.30mm)
Contact Length – Post 0.134″ (3.40mm)
Overall Contact Length 0.333″ (8.45mm)
Insulation Height 0.236″ (6.00mm)
Contact Shape Square
Contact Finish – Mating Tin
Contact Finish Thickness – Mating
Contact Finish – Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features
Operating Temperature -25°C ~ 85°C
Ingress Protection
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Contact Finish Thickness – Post
Applications
Base Product Number B3B-PH-K
