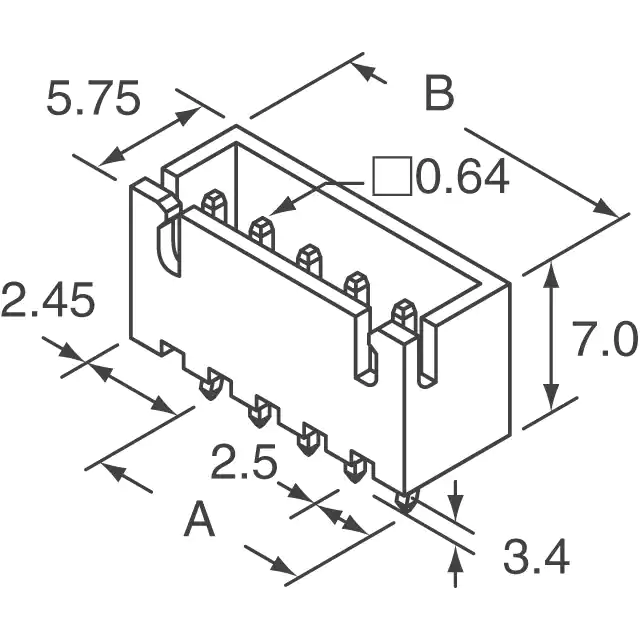

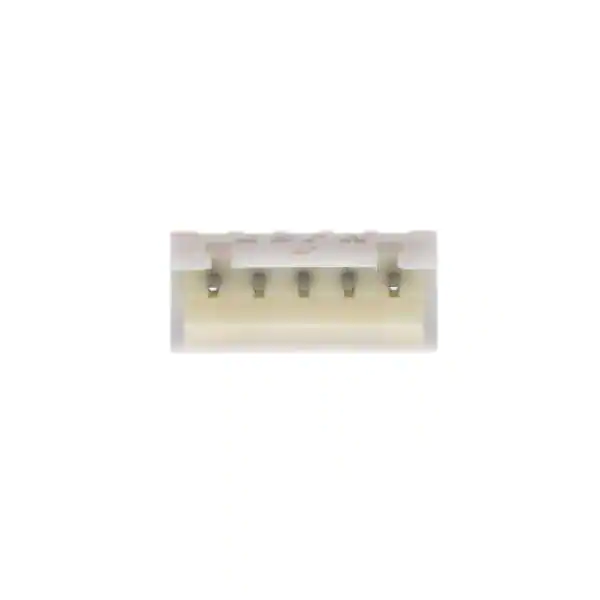

B5B-XH-A(LF)(SN)
Datasheet
2MB
Specifications
| Digi-Key Part Number | 455-2270-ND |
| Manufacturer | JST Sales America Inc. |
| Manufacturer Product Number | B5B-XH-A(LF)(SN) |
| Description | CONN HEADER VERT 5POS 2.5MM |
| Manufacturer Standard Lead Time | 34 Weeks |
| Detailed Description | Connector Header Through Hole 5 position 0.098″ (2.50mm) |
| Category | Connectors, Interconnects |
| Rectangular Connectors – Headers, Male Pins | |
| Mfr | JST Sales America Inc. |
| Series | XH |
| Package | Bulk |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.098″ (2.50mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing – Mating | – |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Solder |
| Fastening Type | Detent Lock |
| Contact Length – Mating | – |
| Contact Length – Post | 0.134″ (3.40mm) |
| Overall Contact Length | – |
| Insulation Height | 0.276″ (7.00mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Tin |
| Contact Finish Thickness – Mating | – |
| Contact Finish – Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Features | – |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Mated Stacking Heights | 9.8mm |
| Contact Finish Thickness – Post | – |
| Applications | – |
| Base Product Number | B5B-XH-A |
