NR4018T100M
Datasheet
1MB
Specifications
| Digi-Key Part Number | 587-1664-2-ND – Tape & Reel (TR) |
| 587-1664-1-ND – Cut Tape (CT) | |
| 587-1664-6-ND – Digi-Reel® | |
| Manufacturer | Taiyo Yuden |
| Manufacturer Product Number | NR4018T100M |
| Description | FIXED IND 10UH 840MA 216MOHM SMD |
| Manufacturer Standard Lead Time | 25 Weeks |
| Detailed Description | 10 µH Shielded Drum Core, Wirewound Inductor 840 mA 216mOhm Max Nonstandard |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Taiyo Yuden |
| Series | NR |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material – Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 840 mA |
| Current – Saturation (Isat) | 1.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 216mOhm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | 24MHz |
| Ratings | – |
| Operating Temperature | -25°C ~ 120°C |
| Inductance Frequency – Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | – |

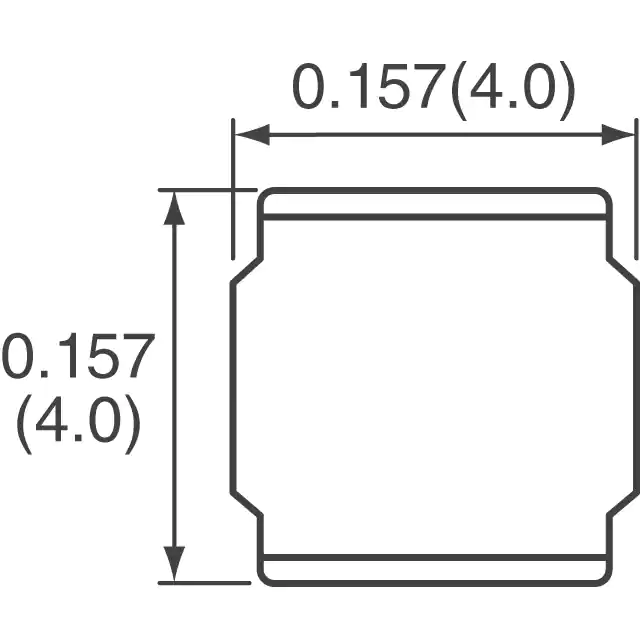

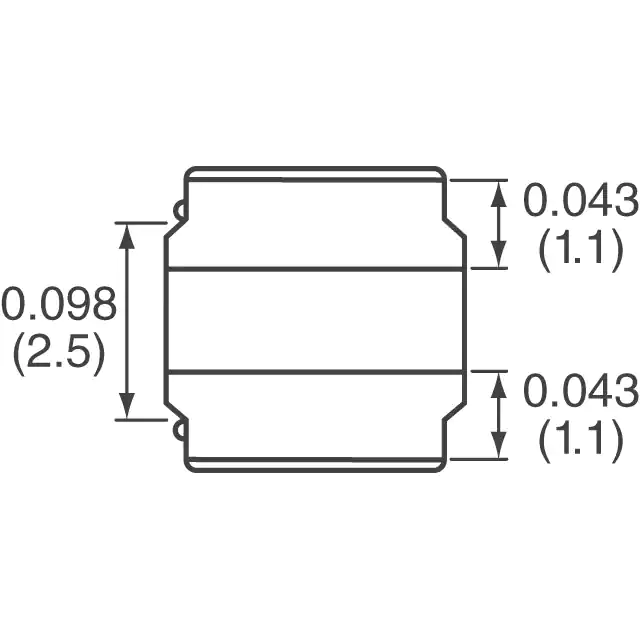

| Size / Dimension | 0.157″ L x 0.157″ W (4.00mm x 4.00mm) |

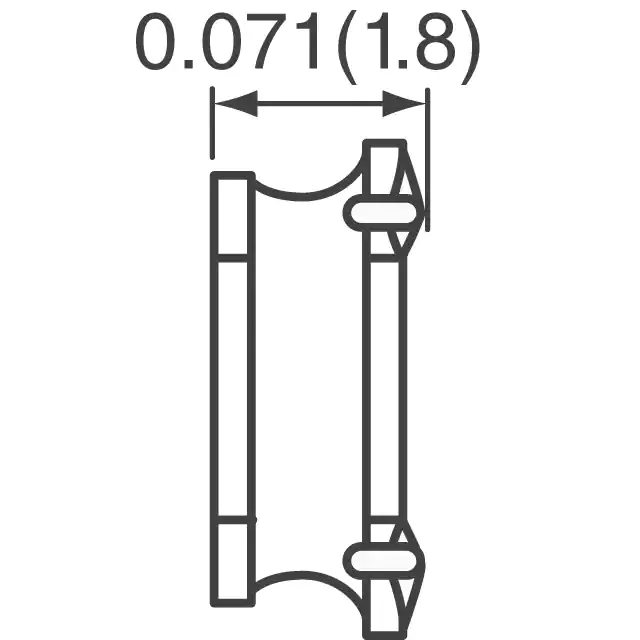

| Height – Seated (Max) | 0.071″ (1.80mm) |
