Same day delivery in stock
74435571500
Datasheet
1MB
Specifications
| Digi-Key part number | 732-2176-2-ND – Tape Reel (TR) |
| 732-2176-1-ND – Shear Tape (CT) | |
| 732-2176-6-ND – Digi-Reel® Custom Reel | |
| manufacturer | Würth Electronics |
| Manufacturer product number | 74435571500 |
| description | FIXED IND 15UH 14A 9 MOHM SMD |
| Original standard lead time | 28 weeks |
| Detailed description | 15 μH shielded inductor 14 A 9 mO non-standard |
| category | Inductors, coils, chokes |
| Fixed inductors | |
| manufacturer | Würth Electronics |
| series | WE-HCI |
| wrap | Reel Tape (TR) |
| Cutting Tape (CT) | |
| Digi-Reel® Custom Reel | |
| Product Status | Sale |
| type | Drum Core, Wirewound |
| Material – core | Metal composites |
| inductance | 15 µH |
| Tolerance | ±20% |
| Rated current (amperes) | 14 A |
| Current – Saturation (Isat) | 14A |
| shield | shield |
| DC Resistance (DCR) | 9 mΩ |
| Q value at different frequencies | – |
| Frequency – Self-resonant | 14MHz |
| grade | AEC-Q200 |
| Operating temperature | -40°C ~ 125°C |
| Inductance Frequency – Test | 100 kHz |
| The installation type | Surface mount type |
| Encapsulation/housing | Non-standard |
| Supplier device package | 1890 |

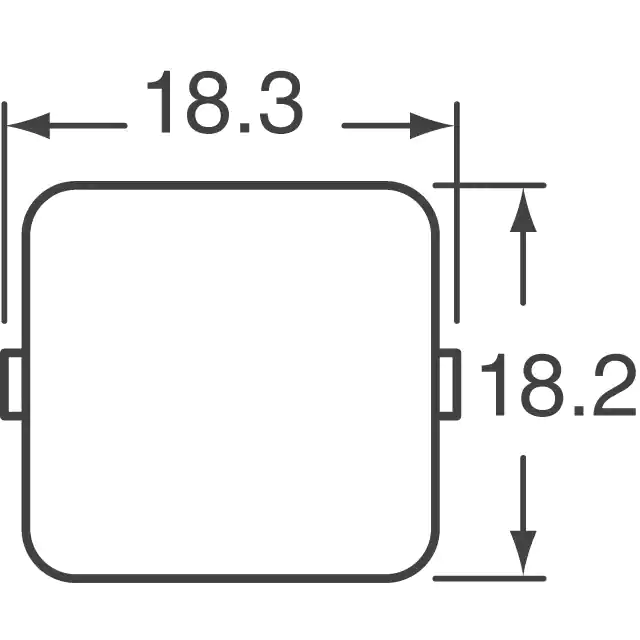

| Size / Size | 0.720″ L x 0.717″ W (18.30mm x 18.20mm) |

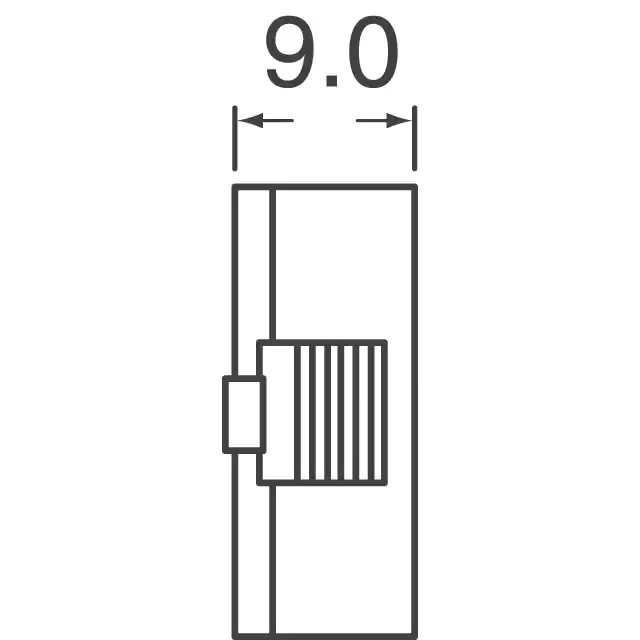

| Height – Installation (Max) | 0.362″（9.20mm） |
