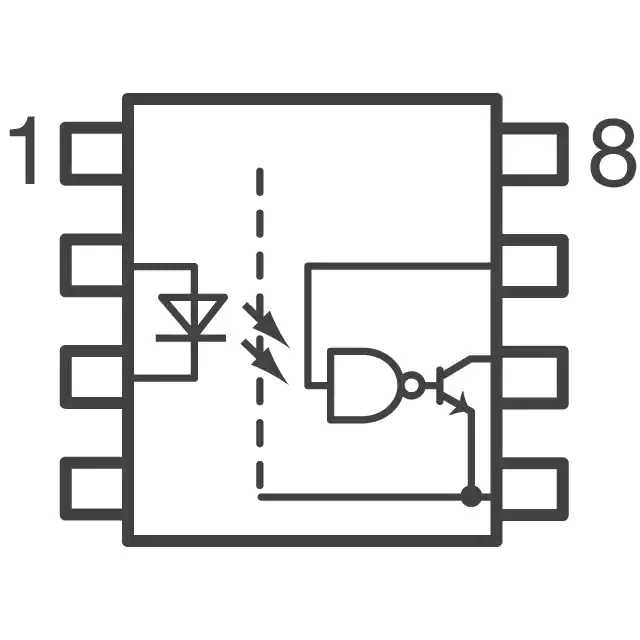

6N137
Datasheet
1MB
Specifications
| Digi-Key Part Number | 751-1262-5-ND |
| Manufacturer | Vishay Semiconductor Opto Division |
| Manufacturer Product Number | 6N137 |
| Description | OPTOISO 5.3KV 1CH OPN DRAIN 8DIP |
| Manufacturer Standard Lead Time | 42 Weeks |
| Detailed Description | Logic Output Optoisolator 10MBd Open Drain 5300Vrms 1 Channel 1kV/µs CMTI 8-DIP |
| Category | Isolators |
| Optoisolators – Logic Output | |
| Mfr | Vishay Semiconductor Opto Division |
| Series | – |
| Package | Tube |
| Product Status | Active |
| Number of Channels | 1 |
| Inputs – Side 1/Side 2 | 1/0 |
| Voltage – Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Open Drain |
| Current – Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 23ns, 7ns |
| Voltage – Forward (Vf) (Typ) | 1.4V |
| Current – DC Forward (If) (Max) | 20mA |
| Voltage – Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300″, 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | 6N137 |
