Home / Products / Connectors / 77311-102-02LF

Same day delivery in stock

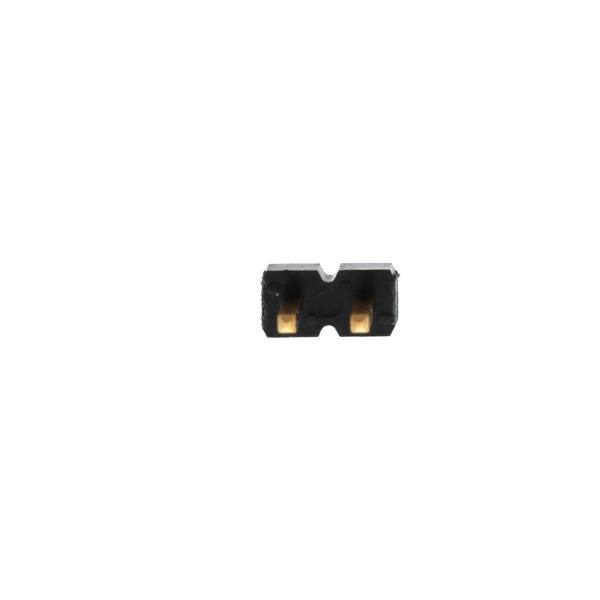

77311-102-02LF

Datasheet

1MB

Specifications

cms-digikey-product-number 609-5679-ND
cms-manufacturer Amphenol ICC (FCI)
cms-manufacturer-product-number 77311-102-02LF
cms-description CONN HEADER VERT 2POS 2.54MM
cms-standard-lead-time 22 Weeks
cms-detailed-description Connector Header Through Hole 2 position 0.100″ (2.54mm)
cms-category Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.100″ (2.54mm)
Number of Positions 2
Number of Rows 1
Row Spacing – Mating
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length – Mating 0.230″ (5.84mm)
Contact Length – Post 0.135″ (3.43mm)
Overall Contact Length 0.465″ (11.81mm)
Insulation Height 0.100″ (2.54mm)
Contact Shape Square
Contact Finish – Mating Gold or Gold, GXT™
Contact Finish Thickness – Mating 30.0µin (0.76µm)
Contact Finish – Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Features
Operating Temperature -65°C ~ 125°C
Ingress Protection
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Voltage Rating
Mated Stacking Heights
Contact Finish Thickness – Post 78.7µin (2.00µm)
Applications
Base Product Number 77311
