Home / Products / Discrete Semiconductor / BAT54

Same day delivery in stock

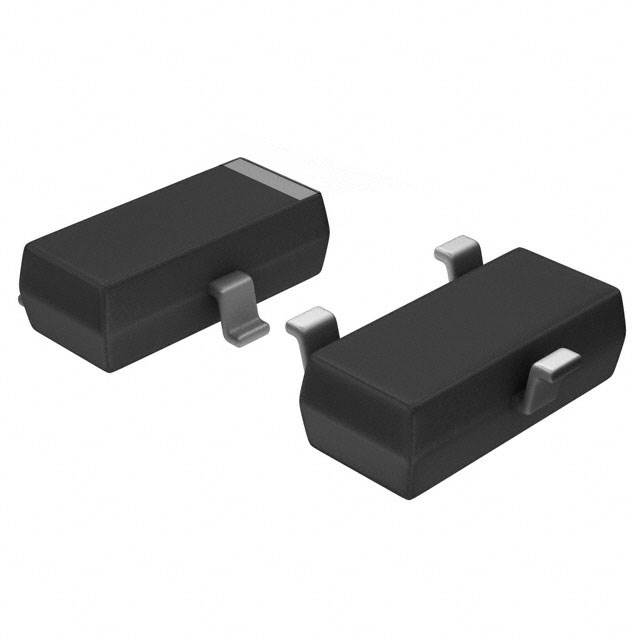

BAT54

Datasheet

1MB

Specifications

Digi-Key part number 1655-BAT54TR-ND – Tape & Reel (TR)
1655-BAT54CT-ND – Cut Tape (CT)
1655-BAT54DKR-ND – Digi-Reel®
Manufacturer SMC Diode Solutions
Manufacturer Product Number BAT54
Description DIODE SCHOTTKY 30V SOT523
Detailed Description Diode Schottky 30 V 200mA Surface Mount SOT-523
Category Discrete Semiconductor Products
Diodes – Rectifiers – Single
Mfr SMC Diode Solutions
Series
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Speed Fast Recovery = 200mA (Io)
Mounting Type Surface Mount
Package / Case SOT-523
Supplier Device Package SOT-523
Base Product Number BAT54
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Diode Type Schottky
Voltage – DC Reverse (Vr) (Max) 30 V
Voltage – Forward (Vf) (Max) @ If 1 V @ 100 mA
Reverse Recovery Time (trr) 5 ns
Current – Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature – Junction 125°C (Max)
Manufacturer Standard Lead Time 14 Weeks

Similar Parts
