Same day delivery in stock
BAT54
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-BAT54-600039-ND |
| Manufacturer | Fairchild Semiconductor |
| Manufacturer Product Number | BAT54 |
| Description | RECTIFIER DIODE, SCHOTTKY, 0.2A, |
| Detailed Description | Diode Schottky 30 V 200mA Surface Mount SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Single | |
| Mfr | Fairchild Semiconductor |
| Series | – |
| Package | Bulk |
| Product Status | Active |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

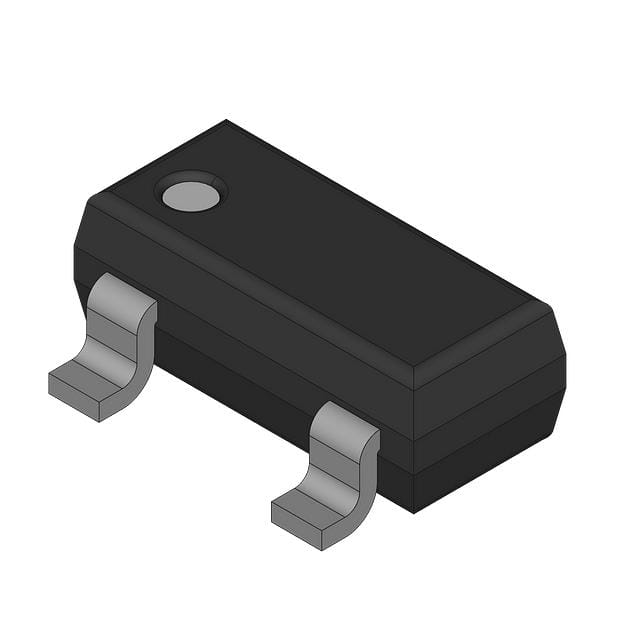

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | BAT54 |
| Moisture Sensitivity Level (MSL) | Vendor Undefined |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Type | Schottky |
| Voltage – DC Reverse (Vr) (Max) | 30 V |
| Voltage – Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Reverse Recovery Time (trr) | 5 ns |
| Current – Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
