Home / Products / Discrete Semiconductor / BAT54C

Same day delivery in stock

BAT54C

Datasheet

1MB

Specifications

Digi-Key part number BAT54CFSTR-ND – Tape & Reel (TR)
BAT54CFSCT-ND – Cut Tape (CT)
BAT54CFSDKR-ND – Digi-Reel®
Manufacturer onsemi
Manufacturer Product Number BAT54C
Description DIODE ARRAY SCHOTTKY 30V SOT23-3
Detailed Description Diode Array 1 Pair Common Cathode Schottky 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
Category Discrete Semiconductor Products
Diodes – Rectifiers – Arrays
Mfr onsemi
Series
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Obsolete
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Type Surface Mount

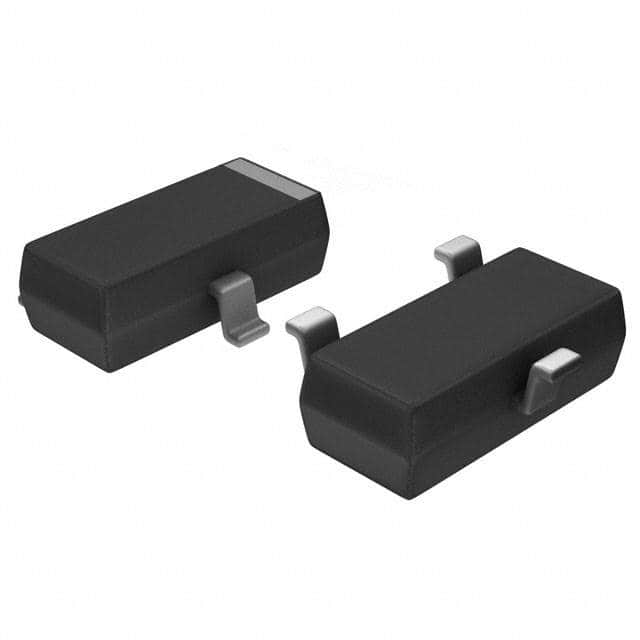

Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Base Product Number BAT54
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage – DC Reverse (Vr) (Max) 30 V
Current – Average Rectified (Io) (per Diode) 200mA
Voltage – Forward (Vf) (Max) @ If 800 mV @ 100 mA
Reverse Recovery Time (trr) 5 ns
Current – Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature – Junction -55°C ~ 150°C
