Home / Products / Discrete Semiconductor / BAT54S

Same day delivery in stock

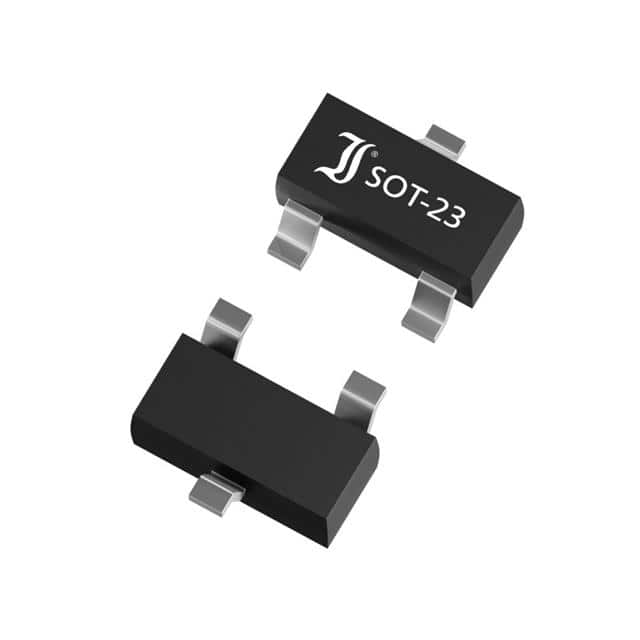

BAT54S

Datasheet

1MB

Specifications

Digi-Key part number 2721-BAT54STR-ND – Tape & Reel (TR)
Manufacturer Diotec Semiconductor
Manufacturer Product Number BAT54S
Description SchottkyD, 30V, 0.2A
Detailed Description Diode Array 1 Pair Series Connection Schottky 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
Category Discrete Semiconductor Products
Diodes – Rectifiers – Arrays
Mfr Diotec Semiconductor
Series
Package Tape & Reel (TR)
Product Status Active
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Base Product Number BAT54
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8541.10.0070
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage – DC Reverse (Vr) (Max) 30 V
Current – Average Rectified (Io) (per Diode) 200mA
Voltage – Forward (Vf) (Max) @ If 1 V @ 100 mA
Reverse Recovery Time (trr) 5 ns
Current – Reverse Leakage @ Vr 2 µA @ 25 V
Operating Temperature – Junction -55°C ~ 150°C
