Home / Products / Discrete Semiconductor / BAV70

Same day delivery in stock

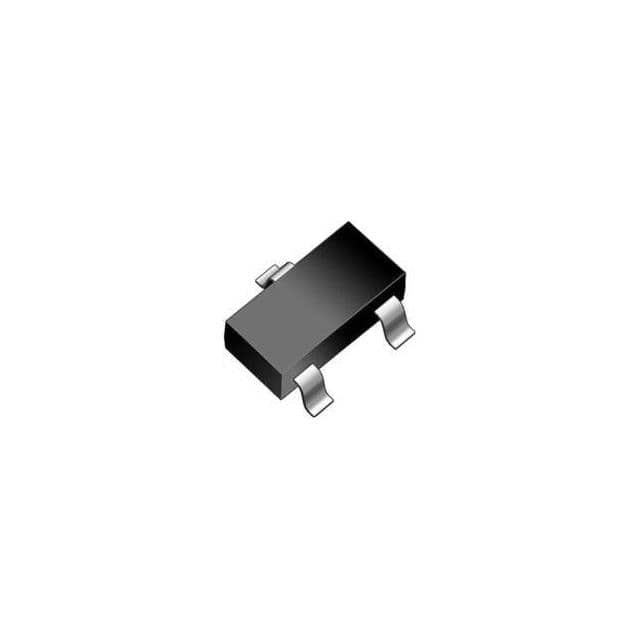

BAV70

Specifications

Digi-Key part number 4024-BAV70TR-ND – Tape & Reel (TR)
Manufacturer HY Electronic (Cayman) Limited
Manufacturer Product Number BAV70
Description SMD SWITCHING DIODE
Detailed Description Diode Array 1 Pair Common Cathode Standard 70 V 200mA Surface Mount
Category Discrete Semiconductor Products
Diodes – Rectifiers – Arrays
Mfr HY Electronic (Cayman) Limited
Series BAV70
Package Tape & Reel (TR)
Product Status Active
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Type Surface Mount
Package / Case
Supplier Device Package SOT-23
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage – DC Reverse (Vr) (Max) 70 V
Current – Average Rectified (Io) (per Diode) 200mA
Voltage – Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Reverse Recovery Time (trr) 6 ns
Current – Reverse Leakage @ Vr 2.5 µA @ 100 V
Operating Temperature – Junction 150°C
