Same day delivery in stock

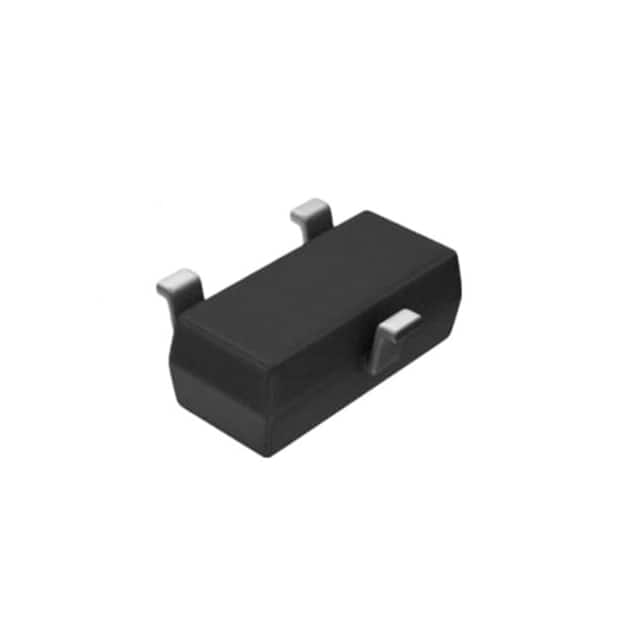

BAV70
Datasheet
1MB
Specifications
| Digi-Key part number | 3372-BAV70TR-ND – Tape & Reel (TR) |
| Manufacturer | MDD |
| Manufacturer Product Number | BAV70 |
| Description | Switching SOT-23, 70V 0.25A |
| Detailed Description | Diode Array 1 Pair Series Connection Standard 70 V 250mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | MDD |
| Series | SOT-23 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 70 V |
| Current – Average Rectified (Io) (per Diode) | 250mA |
| Voltage – Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Reverse Recovery Time (trr) | 6 ns |
| Current – Reverse Leakage @ Vr | 2.5 µA @ 70 V |
| Operating Temperature – Junction | -55°C ~ 125°C |
