BAV70
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-BAV70-ND |
| Manufacturer | Fairchild Semiconductor |
| Manufacturer Product Number | BAV70 |
| Description | RECTIFIER DIODE, 2 ELEMENT, 0.2A |
| Detailed Description | Diode Array 1 Pair Common Cathode Standard 75 V 215mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | Fairchild Semiconductor |
| Series | – |
| Package | Bulk |
| Product Status | Active |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Surface Mount |

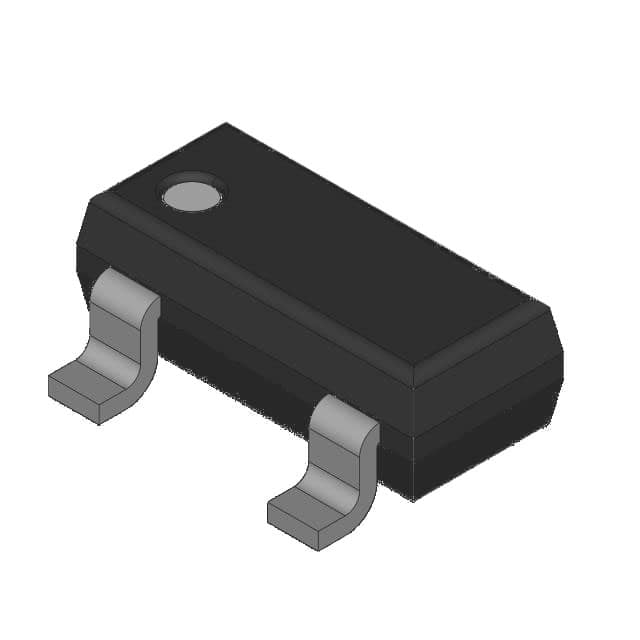

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | BAV70 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 75 V |
| Current – Average Rectified (Io) (per Diode) | 215mA |
| Voltage – Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Current – Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
