BAV70
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-BAV70-ITTR-ND |
| Manufacturer | Infineon Technologies |
| Manufacturer Product Number | BAV70 |
| Description | HIGH SPEED SWITCHING DIODE |
| Detailed Description | Diode Array 1 Pair Common Cathode Standard 70 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | Infineon Technologies |
| Series | – |
| Package | Bulk |
| Product Status | Obsolete |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

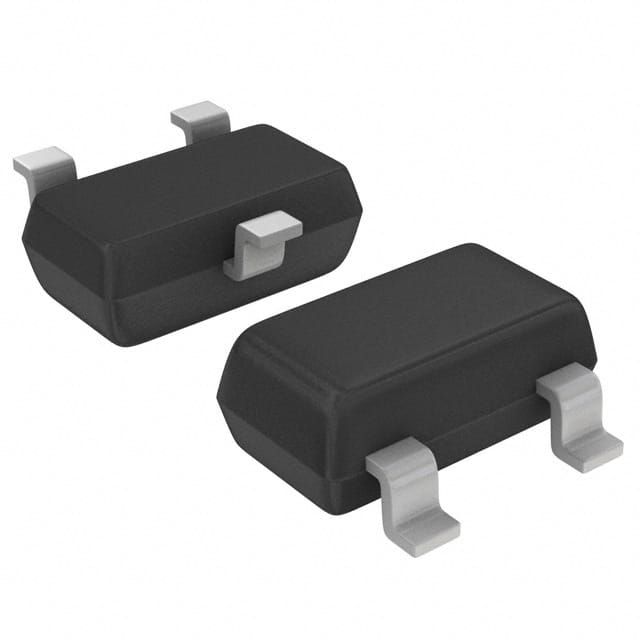

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| RoHS Status | ROHS3 Compliant |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 70 V |
| Current – Average Rectified (Io) (per Diode) | 200mA |
| Voltage – Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 6 ns |
| Current – Reverse Leakage @ Vr | 5 µA @ 70 V |
| Operating Temperature – Junction | 150°C (Max) |
