Home / Products / Discrete Semiconductor / BAV70

Same day delivery in stock

BAV70

Datasheet

1MB

Specifications

Digi-Key part number 3191-BAV70TR-ND – Tape & Reel (TR)
3191-BAV70CT-ND – Cut Tape (CT)
3191-BAV70DKR-ND – Digi-Reel®
Manufacturer Yangzhou Yangjie Electronic Technology Co.,Ltd
Manufacturer Product Number BAV70
Description GEN PURP DIODE 75V 0.15A SOT-23
Detailed Description Diode Array 1 Pair Common Cathode Standard 75 V 150mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Category Discrete Semiconductor Products
Diodes – Rectifiers – Arrays
Mfr Yangzhou Yangjie Electronic Technology Co.,Ltd
Series
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Type Surface Mount

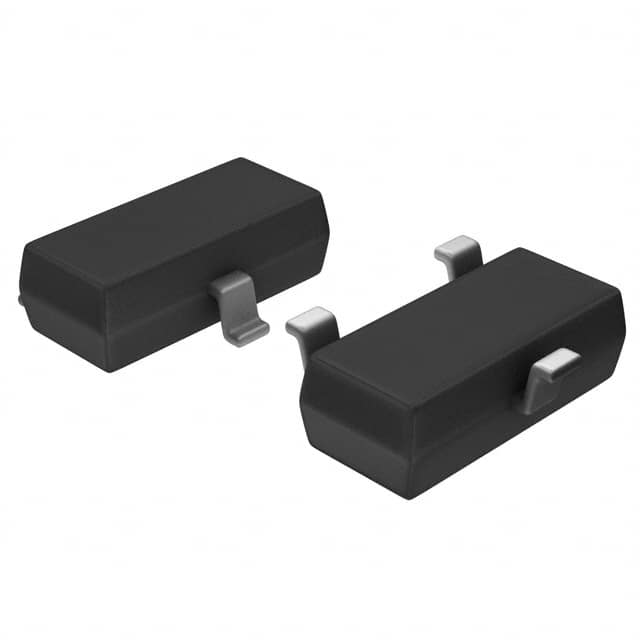

Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage – DC Reverse (Vr) (Max) 75 V
Current – Average Rectified (Io) (per Diode) 150mA (DC)
Voltage – Forward (Vf) (Max) @ If 1 V @ 10 mA
Reverse Recovery Time (trr) 4 ns
Current – Reverse Leakage @ Vr 2.5 µA @ 75 V
Operating Temperature – Junction -55°C ~ 150°C
