BAV99LT1G
Datasheet
1MB
Specifications
| Digi-Key part number | BAV99LT1GOSTR-ND – Tape & Reel (TR) |
| BAV99LT1GOSCT-ND – Cut Tape (CT) | |
| BAV99LT1GOSDKR-ND – Digi-Reel® | |
| Manufacturer | onsemi |
| Manufacturer Product Number | BAV99LT1G |
| Description | DIODE ARRAY 100V 215MA SOT23-3 |
| Detailed Description | Diode Array 1 Pair Series Connection Standard 100 V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | onsemi |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Surface Mount |

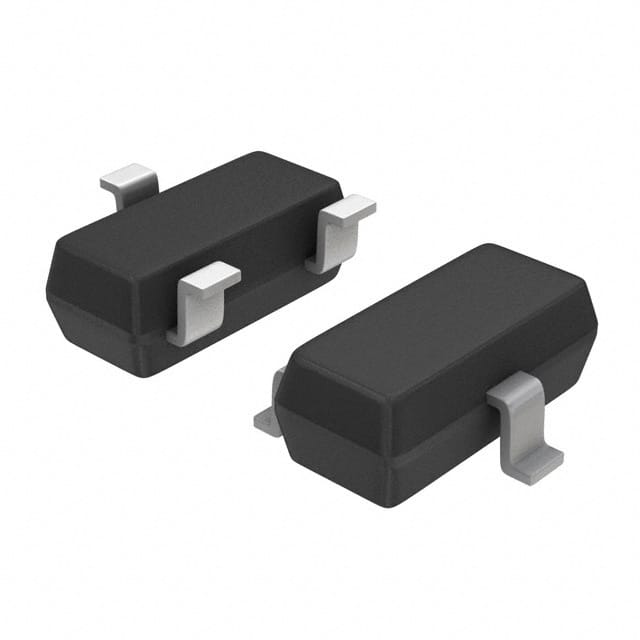

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BAV99 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 100 V |
| Current – Average Rectified (Io) (per Diode) | 215mA (DC) |
| Voltage – Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 6 ns |
| Current – Reverse Leakage @ Vr | 2.5 µA @ 70 V |
| Operating Temperature – Junction | -65°C ~ 150°C |
| Manufacturer Standard Lead Time | 77 Weeks |
