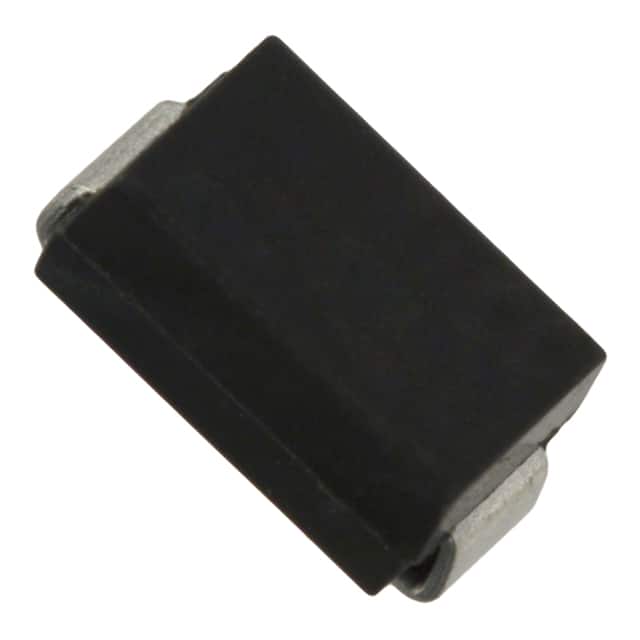

ES1D
Datasheet
1MB
Specifications
| Digi-Key part number | ES1DFSTR-ND – Tape & Reel (TR) |
| ES1DFSCT-ND – Cut Tape (CT) | |
| ES1DFSDKR-ND – Digi-Reel® | |
| Manufacturer | onsemi |
| Manufacturer Product Number | ES1D |
| Description | DIODE GEN PURP 200V 1A SMA |
| Detailed Description | Diode Standard 200 V 1A Surface Mount DO-214AC (SMA) |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Single | |
| Mfr | onsemi |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | ES1 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 200 V |
| Voltage – Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Reverse Recovery Time (trr) | 15 ns |
| Current – Reverse Leakage @ Vr | 5 µA @ 200 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
