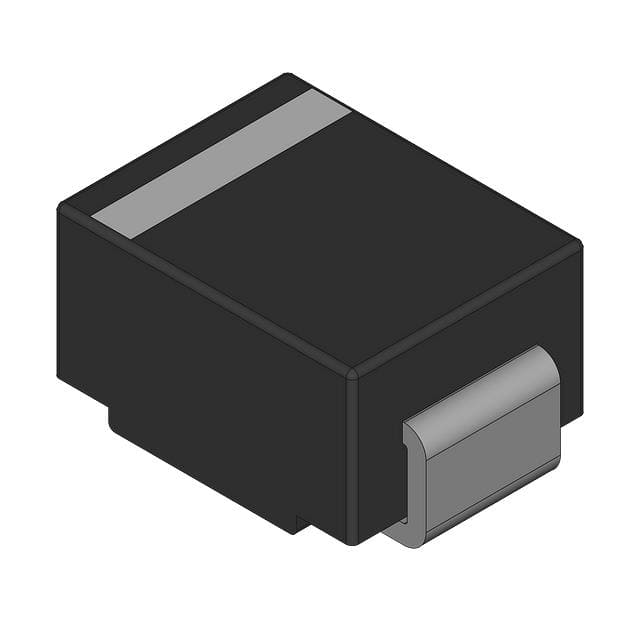

ES1D
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-ES1D-ND |
| Manufacturer | Fairchild Semiconductor |
| Manufacturer Product Number | ES1D |
| Description | RECTIFIER DIODE, 1A, 200V, DO-21 |
| Detailed Description | Diode Standard 200 V 1A Surface Mount DO-214AC, SMA |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Single | |
| Mfr | Fairchild Semiconductor |
| Series | – |
| Package | Bulk |
| Product Status | Active |
| Speed | Fast Recovery = 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC, SMA |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 200 V |
| Voltage – Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Reverse Recovery Time (trr) | 15 ns |
| Current – Reverse Leakage @ Vr | 5 µA @ 200 V |
| Operating Temperature – Junction | -50°C ~ 150°C |
