FI-RE51S-HF-R1500
Datasheet
1MB
Specifications
| Digi-Key Part Number | 670-1206-2-ND – Tape & Reel (TR) |
| 670-1206-1-ND – Cut Tape (CT) | |
| 670-1206-6-ND – Digi-Reel® | |
| Manufacturer | JAE Electronics |
| Manufacturer Product Number | FI-RE51S-HF-R1500 |
| Description | CONN RCPT 51P 0.02 GOLD SMD R/A |
| Manufacturer Standard Lead Time | 15 Weeks |
| Detailed Description | 51 Position Receptacle Connector 0.020″ (0.50mm) Surface Mount, Right Angle Gold |
| Category | Connectors, Interconnects |
| Rectangular Connectors – Headers, Receptacles, Female Sockets | |
| Mfr | JAE Electronics |
| Series | FI-R |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Blade Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 51 |
| Number of Positions Loaded | All |
| Pitch – Mating | 0.020″ (0.50mm) |
| Number of Rows | 1 |
| Row Spacing – Mating | – |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | – |
| Insulation Color | – |
| Insulation Height | 0.148″ (3.75mm) |
| Contact Length – Post | – |
| Operating Temperature | -40°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish – Post | Tin |
| Mated Stacking Heights | – |
| Ingress Protection | – |
| Features | Shielded, Solder Retention |
| Current Rating (Amps) | 0.8A per Contact |
| Voltage Rating | – |
| Applications | General Purpose, Medical |
| Insulation Material | Plastic |
| Contact Shape | – |
| Contact Material | Copper Alloy |
| Contact Finish Thickness – Post | – |
| Base Product Number | FI-RE51S |

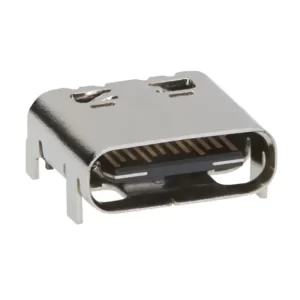

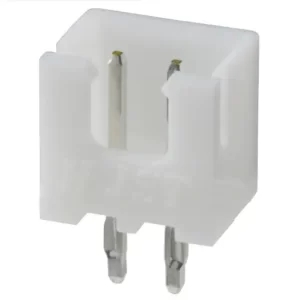

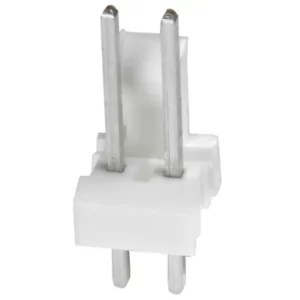

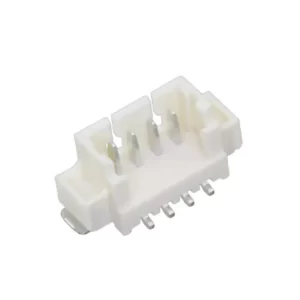

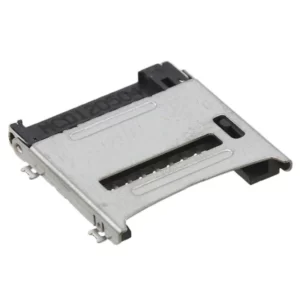

Similar Parts
