IRFP460PBF
Datasheet
1MB
Specifications
| Digi-Key Part Number | IRFP460PBF-ND |
| Manufacturer | Vishay Siliconix |
| Manufacturer Product Number | IRFP460PBF |
| Description | MOSFET N-CH 500V 20A TO247-3 |
| Manufacturer Standard Lead Time | 63 Weeks |
| Detailed Description | N-Channel 500 V 20A (Tc) 280W (Tc) Through Hole TO-247AC |
| Category | Discrete Semiconductor Products |
| Transistors – FETs, MOSFETs – Single | |
| Mfr | Vishay Siliconix |
| Series | – |
| Package | Tube |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current – Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 210 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4200 pF @ 25 V |
| FET Feature | – |
| Power Dissipation (Max) | 280W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

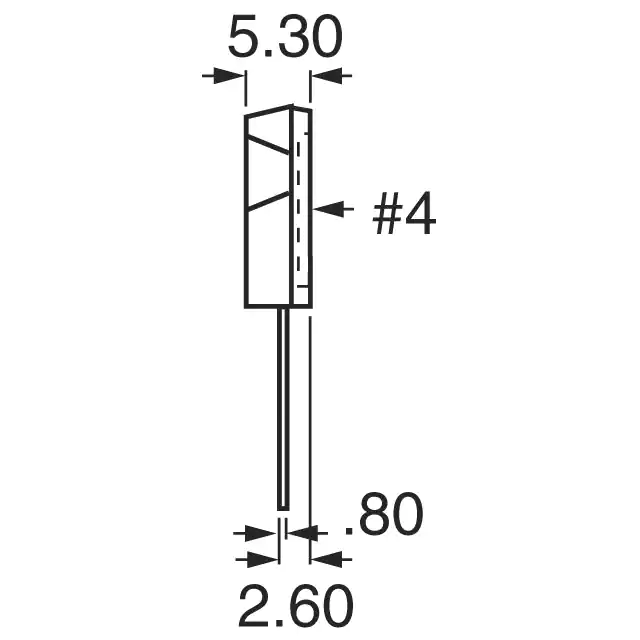

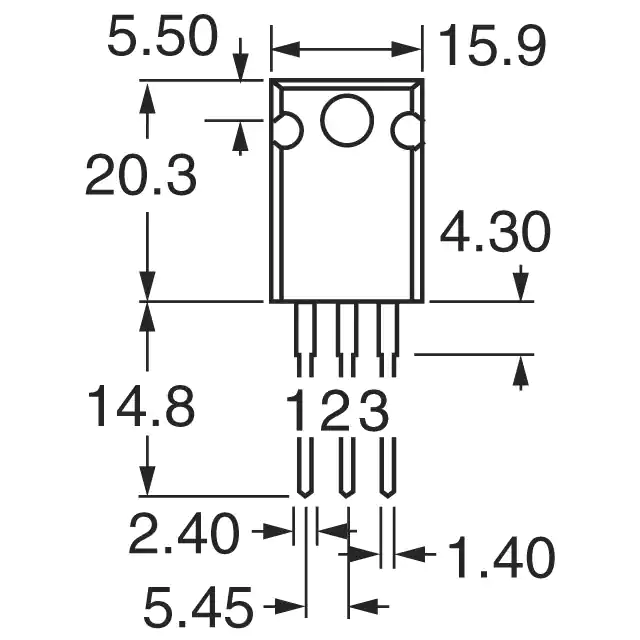

| Supplier Device Package | TO-247AC |
| Package / Case | TO-247-3 |
| Base Product Number | IRFP460 |

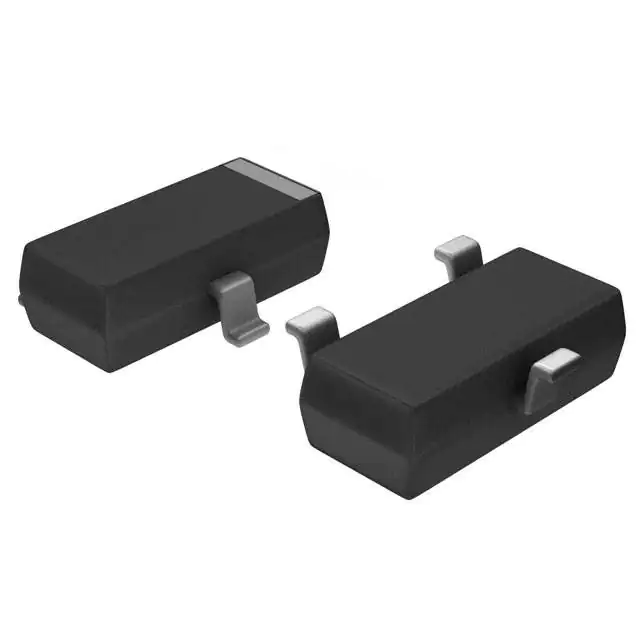

Similar Parts
