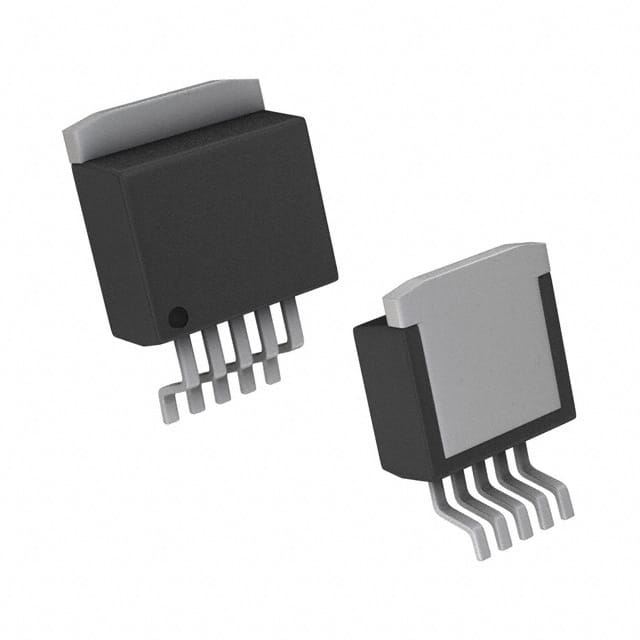

LM2596S-ADJ
Datasheet
1MB
Specifications
| Digi-Key part number | LM2596S-ADJ-ND |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | LM2596S-ADJ |
| Description | IC REG BUCK ADJ 3A TO263-5 |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 3A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators – DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tube |
| Product Status | Obsolete |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Base Product Number | LM2596 |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage – Input (Min) | 4.5V |
| Voltage – Input (Max) | 40V |
| Voltage – Output (Min/Fixed) | 1.2V |
| Voltage – Output (Max) | 37V |
| Current – Output | 3A |
| Frequency – Switching | 150kHz |
| Synchronous Rectifier | No |
