LQP03TN3N0B02D

Datasheet

1MB

Specifications



Digi-Key Part Number 490-6727-2-ND – Tape & Reel (TR)
490-6727-1-ND – Cut Tape (CT)
490-6727-6-ND – Digi-Reel®
Manufacturer Murata Electronics
Manufacturer Product Number LQP03TN3N0B02D
Description FIXED IND 3NH 450MA 250 MOHM SMD
Manufacturer Standard Lead Time 21 Weeks
Detailed Description 3 nH Unshielded Thick Film Inductor 450 mA 250mOhm Max 0201 (0603 Metric)
Category Inductors, Coils, Chokes
Fixed Inductors
Mfr Murata Electronics
Series LQP03
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Type Thick Film
Material – Core Non-Magnetic
Inductance 3 nH
Tolerance ±0.1nH
Current Rating (Amps) 450 mA
Current – Saturation (Isat)
Shielding Unshielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 14 @ 500MHz
Frequency – Self Resonant 9.5GHz
Ratings
Operating Temperature -55°C ~ 125°C
Inductance Frequency – Test 500 MHz
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)

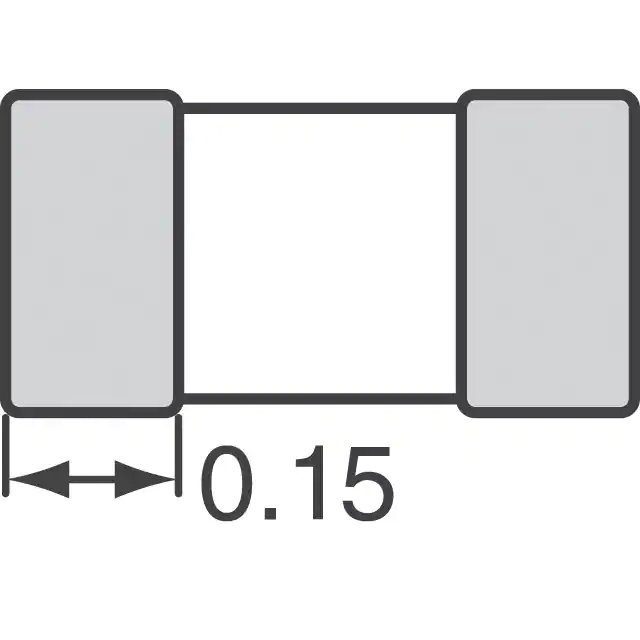

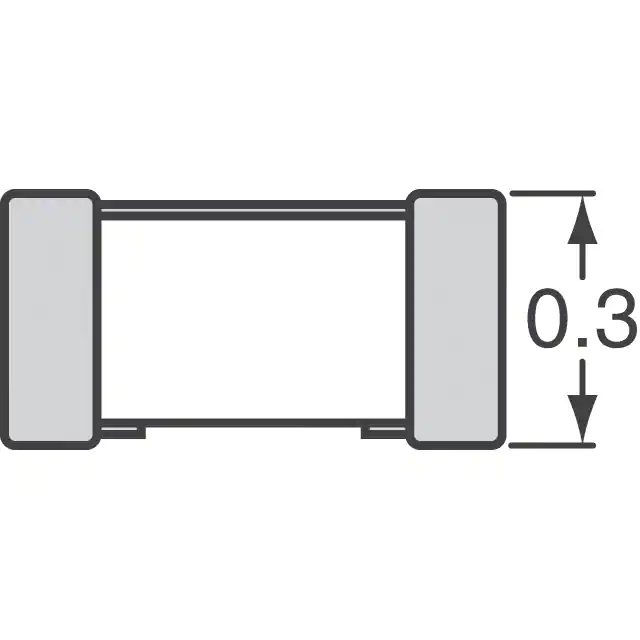

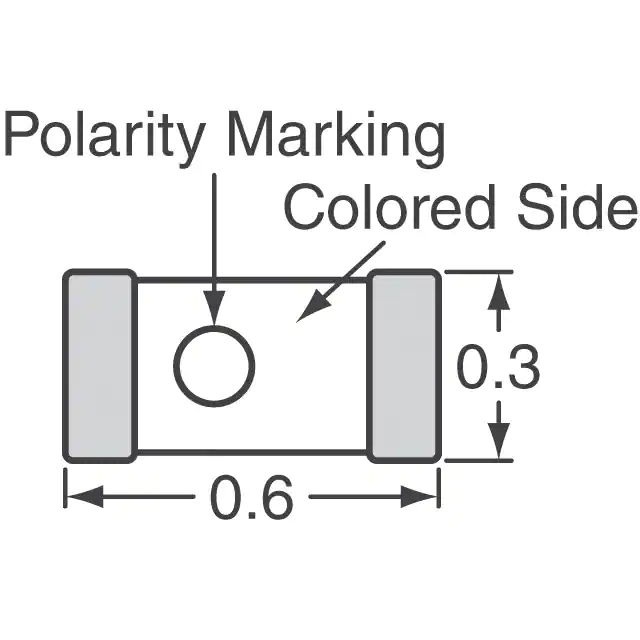

Size / Dimension 0.024″ L x 0.012″ W (0.60mm x 0.30mm)
Height – Seated (Max) 0.013″ (0.33mm)
Base Product Number LQP03TN
