LQP15MN3N9B02D

Datasheet

1MB

Specifications



Digi-Key Part Number 490-1131-2-ND – Tape & Reel (TR)

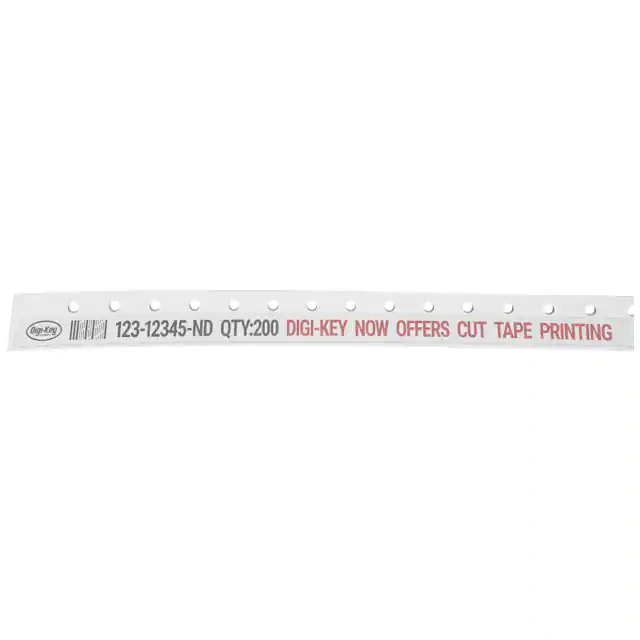

490-1131-1-ND – Cut Tape (CT)
490-1131-6-ND – Digi-Reel®
Manufacturer Murata Electronics
Manufacturer Product Number LQP15MN3N9B02D
Description FIXED IND 3.9NH 170MA 500MOHM SM
Detailed Description 3.9 nH Unshielded Thick Film Inductor 170 mA 500mOhm Max 0402 (1005 Metric)
Category Inductors, Coils, Chokes
Fixed Inductors
Mfr Murata Electronics
Series LQP15
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Last Time Buy
Type Thick Film
Material – Core Non-Magnetic
Inductance 3.9 nH
Tolerance ±0.1nH
Current Rating (Amps) 170 mA
Current – Saturation (Isat)
Shielding Unshielded
DC Resistance (DCR) 500mOhm Max
Q @ Freq 13 @ 500MHz
Frequency – Self Resonant 6GHz
Ratings
Operating Temperature -40°C ~ 85°C
Inductance Frequency – Test 500 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)

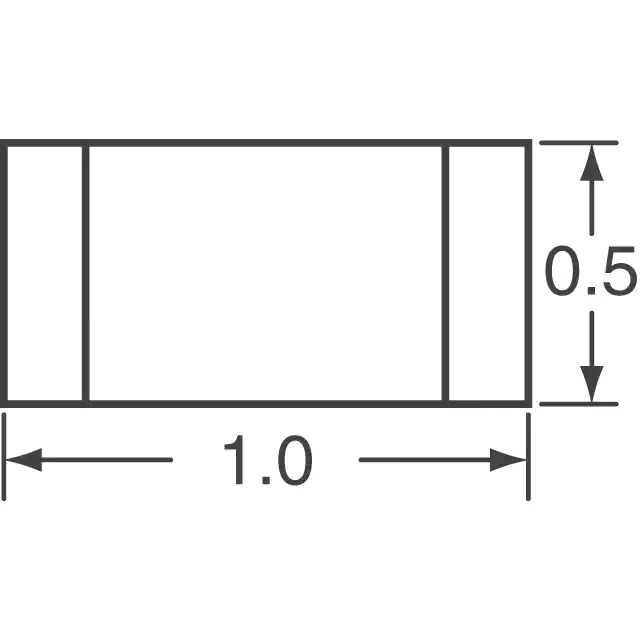

Size / Dimension 0.039″ L x 0.020″ W (1.00mm x 0.50mm)

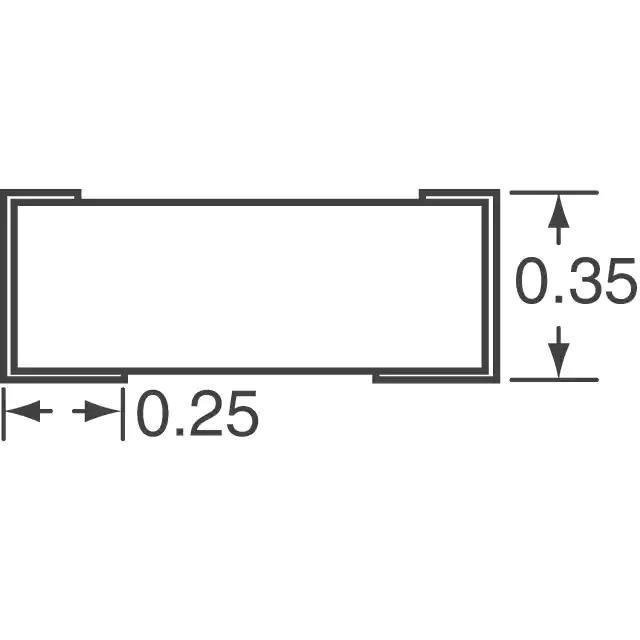

Height – Seated (Max) 0.018″ (0.45mm)
Base Product Number LQP15MN
