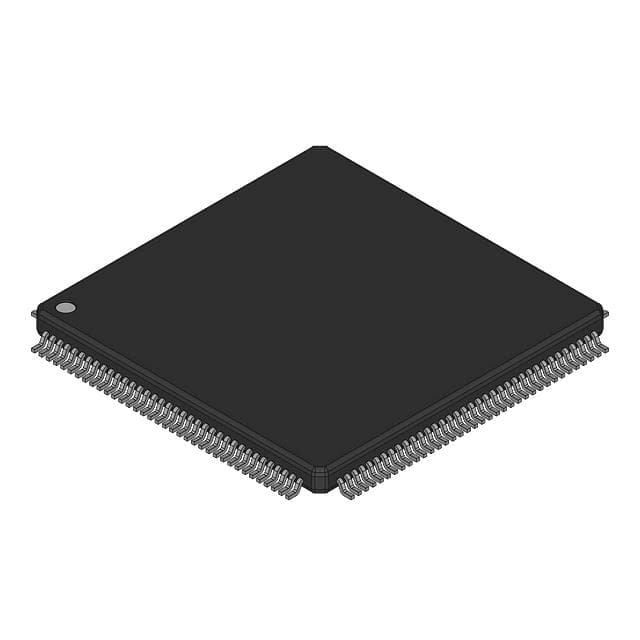

MCF52259CAG80
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-MCF52259CAG80-ND |
| Manufacturer | Freescale Semiconductor |
| Manufacturer Product Number | MCF52259CAG80 |
| Description | IC MCU 32BIT 512KB FLASH 144LQFP |
| Detailed Description | Coldfire V2 MCF5225x Microcontroller IC 32-Bit Single-Core 80MHz 512KB (512K x 8) FLASH 144-LQFP (20×20) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Freescale Semiconductor |
| Series | MCF5225x |
| Package | Bulk |
| Product Status | Active |
| Core Processor | Coldfire V2 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, QSPI, UART/USART, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 96 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 64K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20×20) |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992 |
| HTSUS | 8542.31.0001 |
