MWSA0402S-4R7MT
Datasheet
4MB
Specifications
| Digi-Key Part Number | 3442-MWSA0402S-4R7MTTR-ND – Tape & Reel (TR) |
| 3442-MWSA0402S-4R7MTCT-ND – Cut Tape (CT) | |
| 3442-MWSA0402S-4R7MTDKR-ND – Digi-Reel® | |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Manufacturer Product Number | MWSA0402S-4R7MT |
| Describe | FIXED IND 4.7UH 2.8A 105MOHM SMD |
| Manufacturer Standard Lead Time | 16 Weeks |
| Detailed Description | 4.7 µH Unshielded Drum Core, Wirewound Inductor 2.8 A 105mOhm Max Nonstandard |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSA-S |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material – Core | Alloy Powder |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current – Saturation (Isat) | 3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 105mOhm Max |
| Q @ Freq | – |
| Frequency – Self Resonant | – |
| Ratings | – |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency – Test | 100 kHz |
| Features | – |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | – |
| Size / Dimension | 0.173″ L x 0.165″ W (4.40mm x 4.20mm) |
| Height – Seated (Max) | 0.079″ (2.00mm) |
| Base Product Number | MWSA0402S |

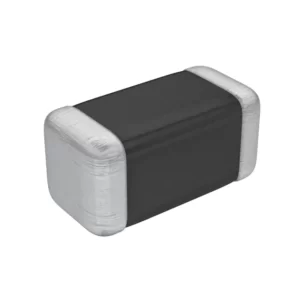

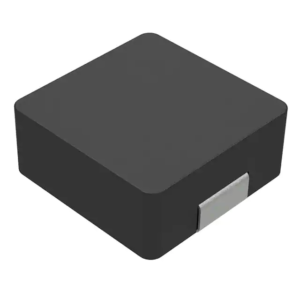

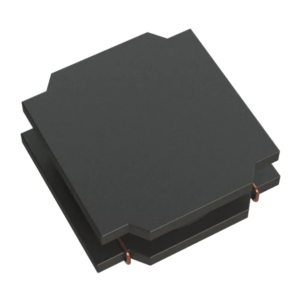

Similar Parts
