NLV32T-100J-PF
Datasheet
1MB
Specifications
| Digi-Key Part Number | 445-1523-2-ND – Tape & Reel (TR) |
| 445-1523-1-ND – Cut Tape (CT) | |
| 445-1523-6-ND – Digi-Reel® | |
| Manufacturer | TDK Corporation |
| Manufacturer Product Number | NLV32T-100J-PF |
| Description | FIXED IND 10UH 150MA 2.1 OHM SMD |
| Manufacturer Standard Lead Time | 30 Weeks |
| Detailed Description | 10 µH Unshielded Drum Core, Wirewound Inductor 150 mA 2.1Ohm Max 1210 (3225 Metric) |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | TDK Corporation |
| Series | NLV-PF |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material – Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 150 mA |
| Current – Saturation (Isat) | – |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.1Ohm Max |
| Q @ Freq | 30 @ 2.52MHz |
| Frequency – Self Resonant | 30MHz |
| Ratings | – |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency – Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |

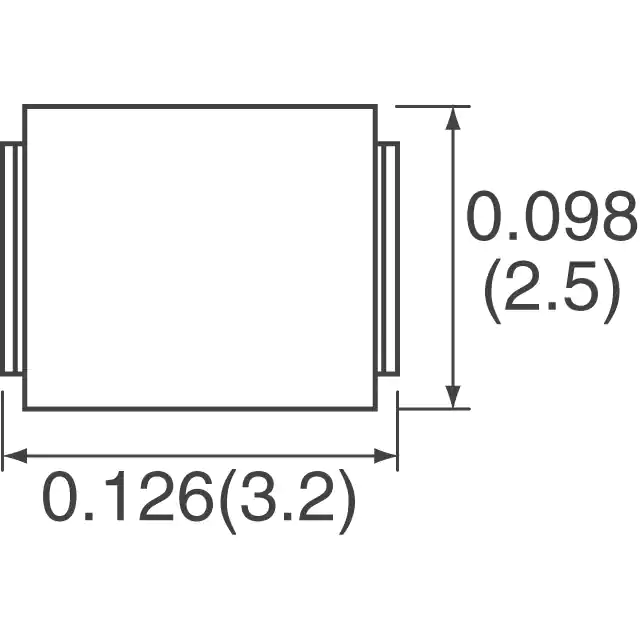

| Size / Dimension | 0.126″ L x 0.098″ W (3.20mm x 2.50mm) |

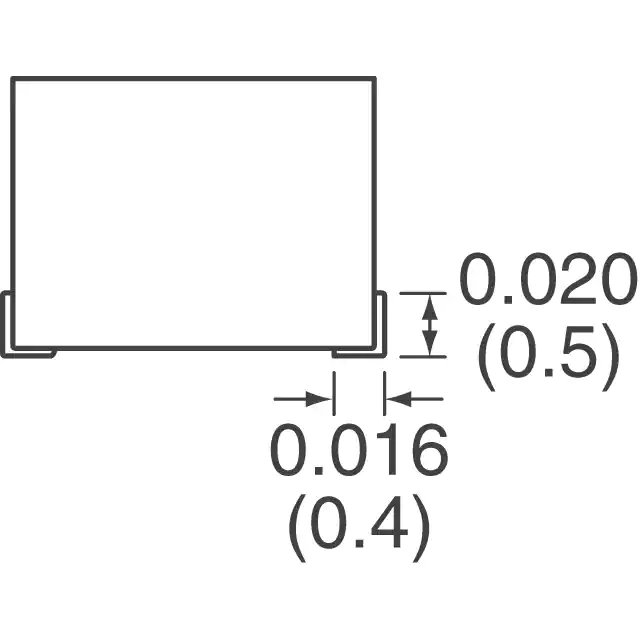

| Height – Seated (Max) | 0.094″ (2.40mm) |
