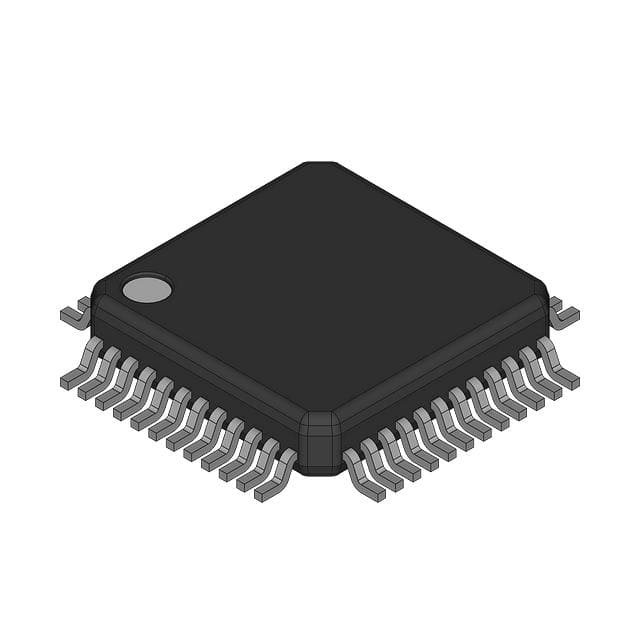

S9S12VR48AF0VLF
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-S9S12VR48AF0VLF-ND |
| Manufacturer | Freescale Semiconductor |
| Manufacturer Product Number | S9S12VR48AF0VLF |
| Description | IC MCU 16BIT 48KB FLASH 48LQFP |
| Detailed Description | 12V1 S12 MagniV Microcontroller IC 16-Bit 25MHz 48KB (48K x 8) FLASH 48-LQFP (7×7) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Freescale Semiconductor |
| Series | S12 MagniV |
| Package | Bulk |
| Product Status | Active |
| Core Processor | 12V1 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 28 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage – Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Data Converters | A/D 6x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7×7) |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
