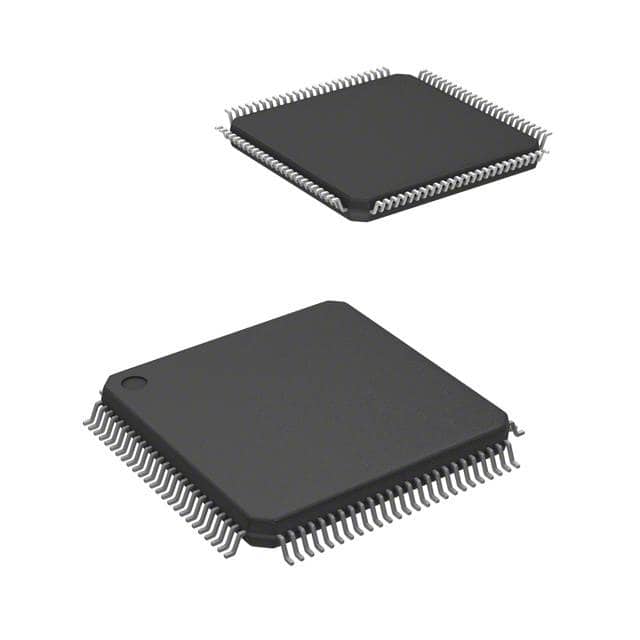

TMS320F28069PZT
Datasheet
1MB
Specifications
| Digi-Key part number | 296-32765-ND |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | TMS320F28069PZT |
| Description | IC MCU 32BIT 256KB FLASH 100LQFP |
| Manufacturer Standard Lead Time | 55 Weeks |
| Detailed Description | C28x C2000™ C28x Piccolo™ Microcontroller IC 32-Bit Single-Core 90MHz 256KB (128K x 16) FLASH 100-LQFP (14×14) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | C2000™ C28x Piccolo™ |
| Package | Tray |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 90MHz |
| Connectivity | CANbus, I²C, McBSP, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 50K x 16 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 1.995V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
| Base Product Number | TMS320 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
