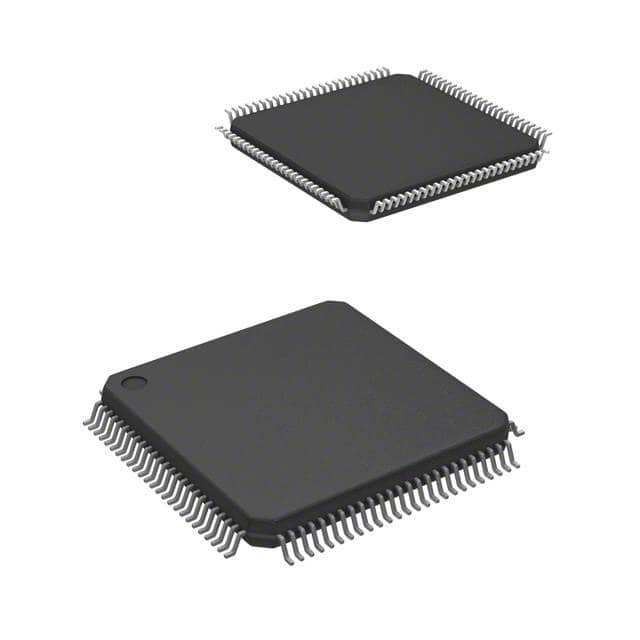

TMS320F2809PZA
Datasheet
4MB
Specifications
| Digi-Key part number | 296-21879-ND |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | TMS320F2809PZA |
| Description | IC MCU 32BIT 256KB FLASH 100LQFP |
| Manufacturer Standard Lead Time | 55 Weeks |
| Detailed Description | C28x Automotive, AEC-Q100, C2000™ C28x Fixed-Point Microcontroller IC 32-Bit Single-Core 100MHz 256KB (128K x 16) FLASH 100-LQFP (14×14) |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, C2000™ C28x Fixed-Point |
| Package | Tray |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, I²C, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | – |
| RAM Size | 18K x 16 |
| Voltage – Supply (Vcc/Vdd) | 1.71V ~ 1.89V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
| Base Product Number | TMS320 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
