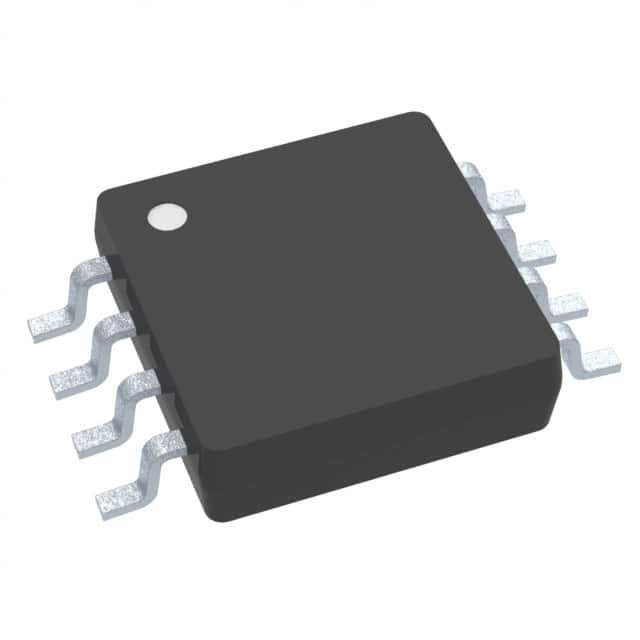

TPS560200QDGKRQ1
Datasheet
1MB
Specifications
| Digi-Key part number | 296-44575-2-ND – Tape & Reel (TR) |
| 296-44575-1-ND – Cut Tape (CT) | |
| 296-44575-6-ND – Digi-Reel® | |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | TPS560200QDGKRQ1 |
| Description | IC REG BUCK ADJ 500MA 8VSSOP |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 500mA 8-TSSOP, 8-MSOP (0.118″, 3.00mm Width) |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators – DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, SWIFT™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118″, 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | TPS560200 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
| Manufacturer Standard Lead Time | 55 Weeks |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Voltage – Input (Max) | 17V |
| Voltage – Output (Min/Fixed) | 0.8V |
| Voltage – Output (Max) | 6.5V |
