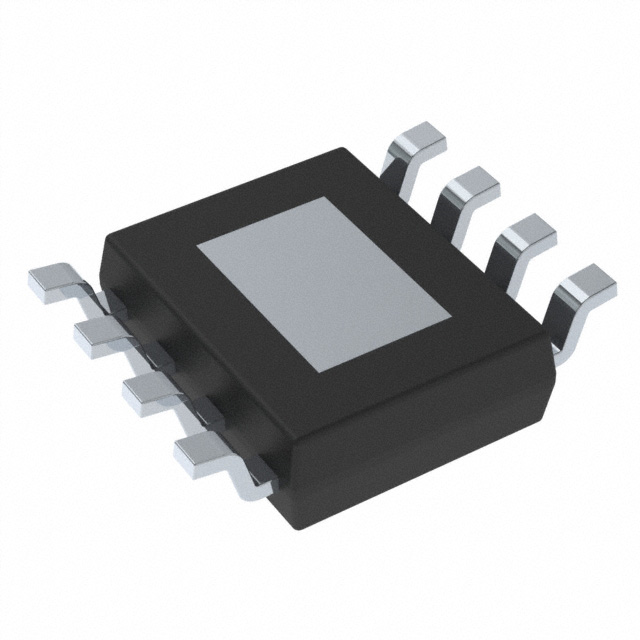

TPS7B4253QDDARQ1
Datasheet
3MB
Specifications
| Digi-Key Part Number | 296-43781-2-ND – Tape & Reel (TR) |
| 296-43781-1-ND – Cut Tape (CT) | |
| 296-43781-6-ND – Digi-Reel® | |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | TPS7B4253QDDARQ1 |
| Description | IC REG LIN POS ADJ 300MA 8SO |
| Manufacturer Standard Lead Time | 35 Weeks |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 300mA 8-SO PowerPad |
| Category | Integrated Circuits (ICs) |
| PMIC – Voltage Regulators – Linear | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage – Input (Max) | 40V |
| Voltage – Output (Min/Fixed) | 1.5V |
| Voltage – Output (Max) | 40V |
| Voltage Dropout (Max) | 0.52V @ 200mA |
| Current – Output | 300mA |
| Current – Quiescent (Iq) | 18 µA |
| Current – Supply (Max) | 400 µA |
| PSRR | 70dB (100Hz) |
| Control Features | – |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | TPS7B4253 |
