Home / Products / Connectors / 0533980471

Same day delivery in stock

0533980471

Datasheet

1MB

Specifications

Digi-Key Part Number WM7608TR-ND – Tape & Reel (TR)
WM7608CT-ND – Cut Tape (CT)
WM7608DKR-ND – Digi-Reel®
Manufacturer Molex
Manufacturer Product Number 533980471
Description CONN HEADER SMD 4POS 1.25MM
Manufacturer Standard Lead Time 16 Weeks
Detailed Description Connector Header Surface Mount 4 position 0.049″ (1.25mm)
Category Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Mfr Molex
Series PicoBlade 53398
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Active
Connector Type Header
Contact Type Male Blade

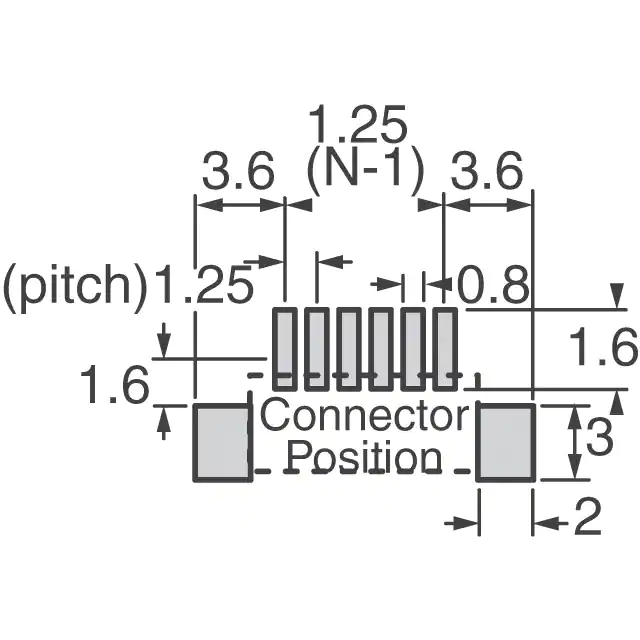

Pitch – Mating 0.049″ (1.25mm)
Number of Positions 4
Number of Rows 1
Row Spacing – Mating
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 3 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length – Mating
Contact Length – Post
Overall Contact Length

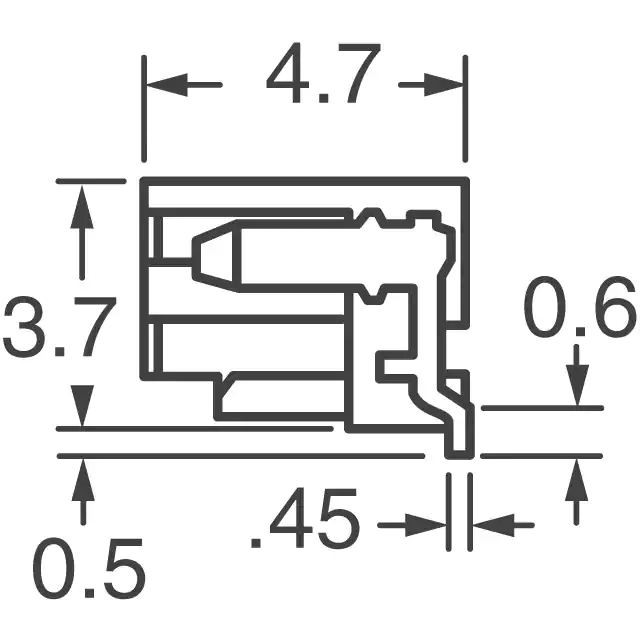

Insulation Height 0.185″ (4.70mm)
Contact Shape Rectangular
Contact Finish – Mating Tin
Contact Finish Thickness – Mating 39.4µin (1.00µm)
Contact Finish – Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature
Ingress Protection
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps)
Voltage Rating
Mated Stacking Heights
Contact Finish Thickness – Post
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 53398

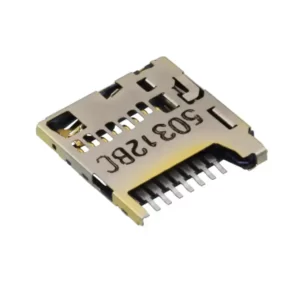

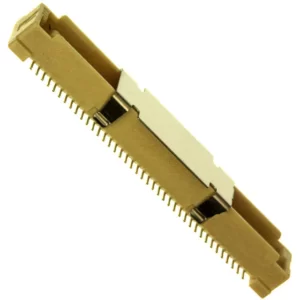

Similar Parts
