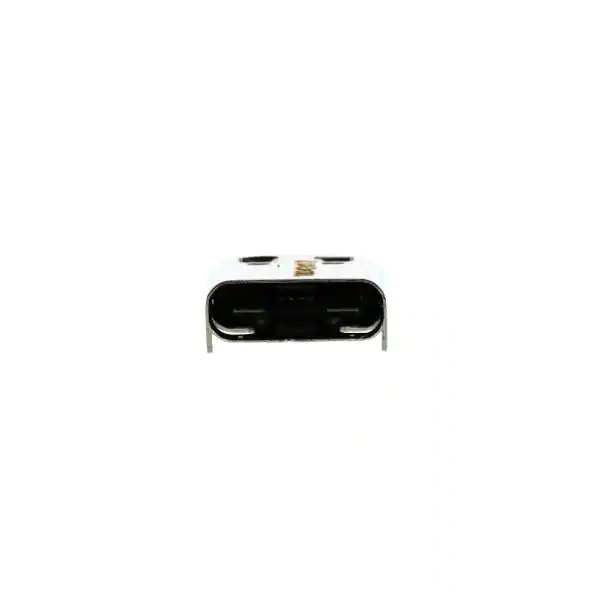

1054500101
Datasheet
1MB
Specifications
| Digi-Key Part Number | WM12856TR-ND – Tape & Reel (TR) |
| WM12856CT-ND – Cut Tape (CT) | |
| WM12856DKR-ND – Digi-Reel® | |
| Manufacturer | Molex |
| Manufacturer Product Number | 1054500101 |
| Description | CONN RCP USB3.1 TYPEC 24P SMD RA |
| Manufacturer Standard Lead Time | 19 Weeks |
| Detailed Description | USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole |
| Category | Connectors, Interconnects |
| USB, DVI, HDMI Connectors | |
| Mfr | Molex |
| Series | 105445 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Connector Type | USB-C (USB TYPE-C) |
| Number of Contacts | 24 |
| Gender | Receptacle |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | – |
| Ingress Protection | – |
| Operating Temperature | -30°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 0.25A, 1A, 5A |
| Voltage – Rated | 30VAC/DC |
| Mating Cycles | 10000 |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | 105450 |
