BAT54S
Datasheet
1MB
Specifications
| Digi-Key part number | 2156-BAT54S-ND |
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | BAT54S |
| Description | RECTIFIER, SCHOTTKY, 2 ELEMENT, |
| Detailed Description | Diode Array 1 Pair Series Connection Schottky 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | Texas Instruments |
| Series | – |
| Package | Bulk |
| Product Status | Active |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

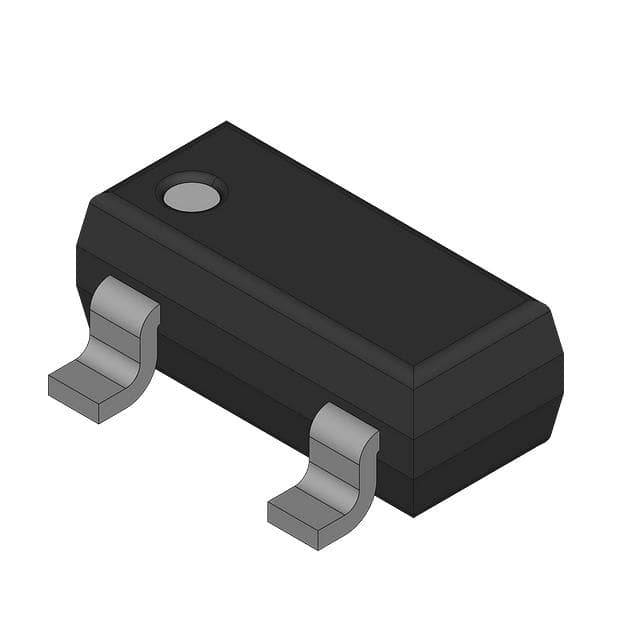

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BAT54 |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8541.10.0070 |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Schottky |
| Voltage – DC Reverse (Vr) (Max) | 30 V |
| Current – Average Rectified (Io) (per Diode) | 200mA |
| Voltage – Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Reverse Recovery Time (trr) | 5 ns |
| Current – Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
