Home / Products / Discrete Semiconductor / BAW56

Same day delivery in stock

BAW56

Datasheet

1MB

Specifications

Digi-Key part number BAW56FSTR-ND – Tape & Reel (TR)
BAW56FSCT-ND – Cut Tape (CT)
BAW56FSDKR-ND – Digi-Reel®
Manufacturer onsemi
Manufacturer Product Number BAW56
Description DIODE ARRAY GP 85V 200MA SOT23-3
Detailed Description Diode Array 1 Pair Common Anode Standard 85 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
Category Discrete Semiconductor Products
Diodes – Rectifiers – Arrays
Mfr onsemi
Series
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Obsolete
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Type Surface Mount

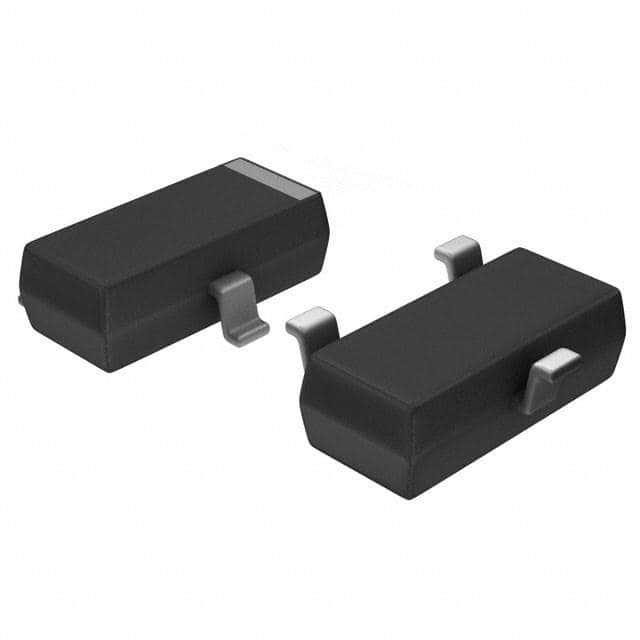

Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Base Product Number BAW56
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Diode Configuration 1 Pair Common Anode
Diode Type Standard
Voltage – DC Reverse (Vr) (Max) 85 V
Current – Average Rectified (Io) (per Diode) 200mA
Voltage – Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Reverse Recovery Time (trr) 6 ns
Current – Reverse Leakage @ Vr 2.5 µA @ 70 V
Operating Temperature – Junction 150°C (Max)
