BAW56
Datasheet
1MB
Specifications
| Digi-Key part number | 3191-BAW56TR-ND – Tape & Reel (TR) |
| 3191-BAW56CT-ND – Cut Tape (CT) | |
| 3191-BAW56DKR-ND – Digi-Reel® | |
| Manufacturer | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Manufacturer Product Number | BAW56 |
| Description | GEN PURP DIODE 100V 0.15A SOT-2 |
| Detailed Description | Diode Array 1 Pair Common Anode Standard 100 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3 |
| Category | Discrete Semiconductor Products |
| Diodes – Rectifiers – Arrays | |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Series | – |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |

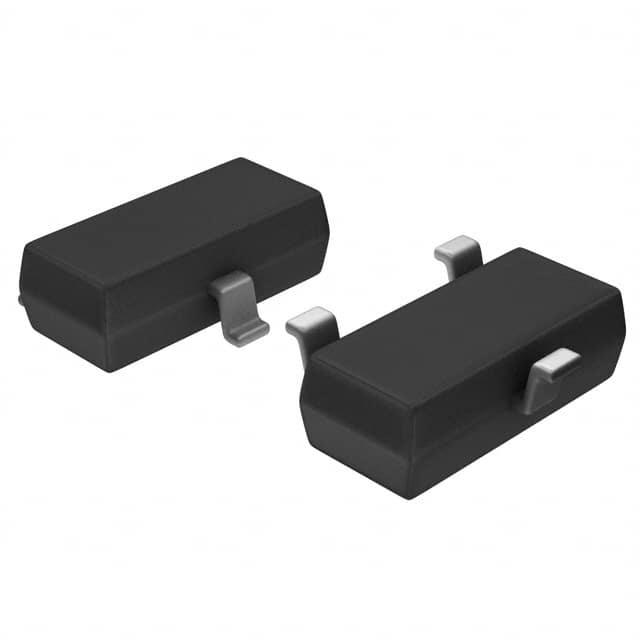

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | BAW56 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage – DC Reverse (Vr) (Max) | 100 V |
| Current – Average Rectified (Io) (per Diode) | 200mA |
| Voltage – Forward (Vf) (Max) @ If | 855 mV @ 10 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Current – Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Operating Temperature – Junction | -55°C ~ 150°C |
