PIC16F688-I/ST
Datasheet
4MB
Specifications
| Digi-Key part number | PIC16F688-I/ST-ND |
| Manufacturer | Microchip Technology |
| Manufacturer Product Number | PIC16F688-I/ST |
| Description | IC MCU 8BIT 7KB FLASH 14TSSOP |
| Detailed Description | PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 7KB (4K x 14) FLASH 14-TSSOP |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 16F |
| Package | Tube |
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 12 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 256 x 8 |
| Voltage – Supply (Vcc/Vdd) | 2V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

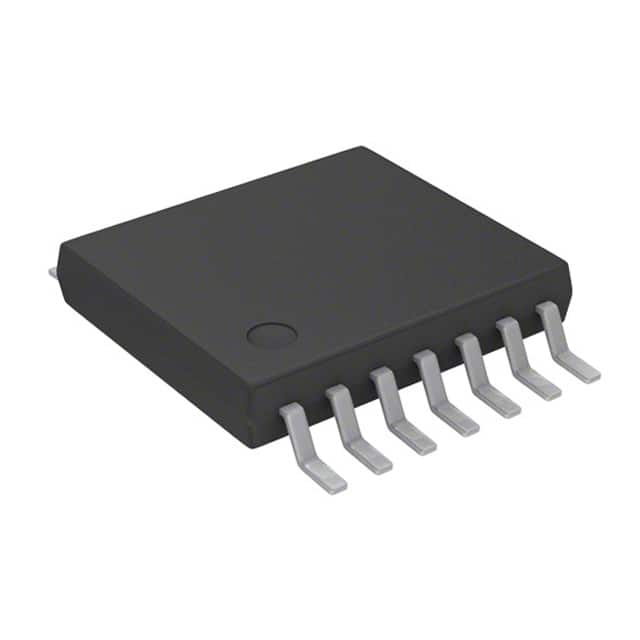

| Package / Case | 14-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | PIC16F688 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
| Manufacturer Standard Lead Time | 52 Weeks |
