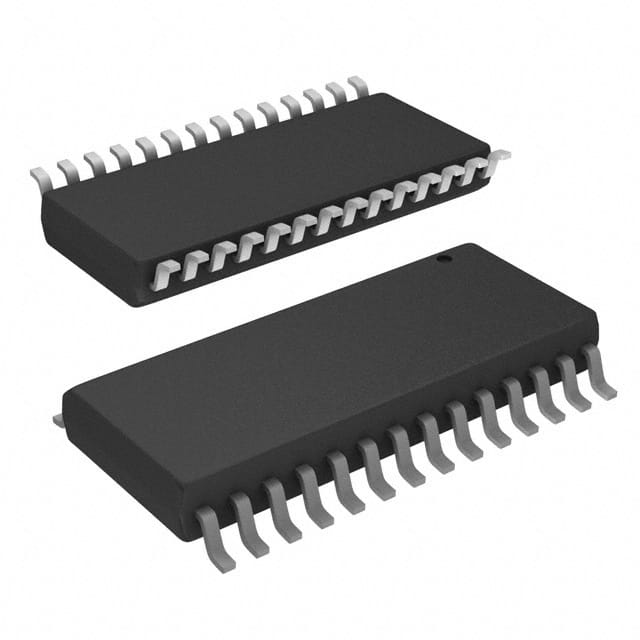

PIC18F2520-I/SO
Datasheet
7MB
Specifications
| Digi-Key part number | PIC18F2520-I/SO-ND |
| Manufacturer | Microchip Technology |
| Manufacturer Product Number | PIC18F2520-I/SO |
| Description | IC MCU 8BIT 32KB FLASH 28SOIC |
| Detailed Description | PIC PIC® 18F Microcontroller IC 8-Bit 40MHz 32KB (16K x 16) FLASH 28-SOIC |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Microchip Technology |
| Series | PIC® 18F |
| Package | Tube |
| Product Status | Active |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (16K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 1.5K x 8 |
| Voltage – Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295″, 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | PIC18F2520 |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
| Manufacturer Standard Lead Time | 51 Weeks |
